Biological Filters/Waterfall Weirs

This page is about biological filters.  Pond Supplies

Tired of cleaning your filter pads and biological media?


Is fish growth taxing your filtration system? Interested in making your existing water feature more maintenance-friendly and less time consuming with minimal disturbance to your property?

pond filters

Upgrade your Watergarden for easier and superior performance.


With a simple turn of a handle, sludge and organic waste can be back-flushed quickly and easily. Back-flush nutrient-rich water on your trees and shurbs

filter backflush

UltraKlean™ Pressurized Biological Pond Filter

The Aquascape UltraKlean™ Pond Filter with high-output ultraviolet clarifier and integrated electronic bulb-saver filters ponds, providing pond owners with optimum water conditions and crystal-clear water.
The unique sponge-free design minimizes maintenance and maximizes efficient mechanical and biological filtration. The included biological media packs tightly together, effectively trapping debris.

The high-output UV bulb eliminates single-celled algae which cause single-celled algae (suspended algae) blooms. A bulb-saver timer feature saves bulb life and provides an ideal time to add water treatments.
The simple-to-use self-cleaning feature allows for the unit to be backwashed in less than five minutes without opening the canister or getting your hands dirty.
A cleaning indicator light will automatically remind you when the filter requires backwashing. Aquascape UltraKlean™ Pond Filters come complete with all necessary fittings and carries a 3-year limited warranty.

Product Features

  • Provides optimal filtration for ponds up to 1,500 gallons / 5678 liters

  • Efficiently traps dirt and debris and eliminates green water

  • Includes Aquascape UltraKlean™ Bio-Media and T5 high-output ultraviolet clarifier/sterilizer

  • Includes 3 x 1", 1.25", 1.5" multi-hose adapters and 1 x backwash cap

  • Easily integrated into new or existing ponds

  • 3-year warranty (warranty does not cover UV lamp)


Product Specifications

  • Max Pond Size:  1500 Gallons

  • UVC Bulb: 28W

  • Cord Length: 20'

  • Hose Diameter: 1", 1.25", 1.5"

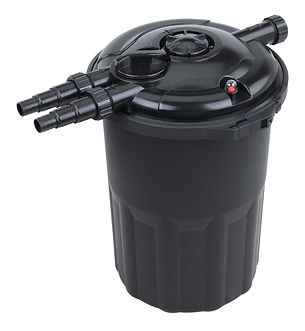

Eco-Clear Pond Filters

EasyPro Eco-Clear Pressure Filters provide excellent, dual filtration for ponds.
Ideal for preformed ponds and small water features needing effective filtration.

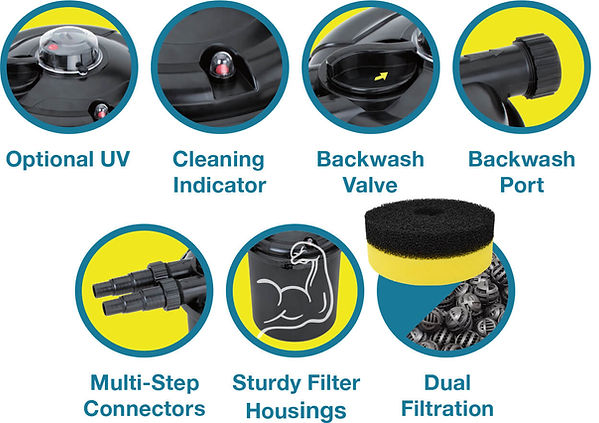

• Sturdy filter housings – can be partially buried up to cleaning ring for easy concealment

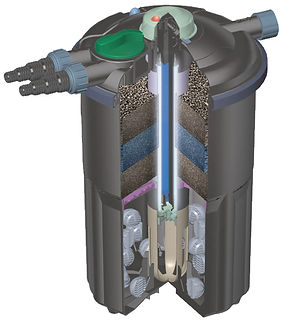

• Dual filtration – filter pads collect solid debris while bio-media provides biological filtration
• Optional UV for crystal clear water
• Filters are easy to disassemble and clean, making maintenance a snap!
• Multi-step connectors – inlet/outlet fittings accept a variety of tubing sizes
• Three-year warranty



EC2600 and EC3900 unit bonus features
• Cleaning indicator – shows when the filter needs to be cleaned
• Backwash valve to extend the time between full cleanouts
• 1 1/2″ Adaptor fittings for PVC connections


Model                Max Pond             Size: Diameter x Height            Max Flow Rate                   Inlet/Outlet Size

EC1300              600 Gallons           14.08" x 12.24 x 15.47"                      1300 GPH                          1.5", 3/4", 1"
EC2600            1300 Gallons           21.26" x 14.92" x 17.48"                     2600 GPH                         1.5", 1.25", 1"

EC3900            2000 Gallons           21.26" x 14.92" x 17.48"                    3900 GPH                          1.5", 1.25", 1"


Easy Pro  External Pressure Filters

Mechanical and biological filtration in one package. Comes with built-in turn handle back-flush assembly for easy maintenance. They can also be left in the ground over winter.
These are invaluable for a pond with heavy fish loads or provide a professional-grade solution for biological filtration where our Filterfalls will not work within the space allocated.



  • Can be buried up to control head, if desired, for easy concealment

  • Strong heavy-duty polyethylene body

  • Simple to assemble and set up

  • Easy back-flush

  • Includes Ultimate non-clogging bio media with 500 SSA

  • Minimal back pressure – high flow rate media creates very little back pressure

  • Back flush waste line has clear section to easily monitor cleaning cycle

  • 3 year warranty

The Power of the air blower  -   Regular backflushing is required to clear bead filters of waste. Using an Air Blower first to loosen debris makes back-flushing faster, more efficient, and effective.













Saves on electrical costs
Using an Air Blower first to loosen debris allows the backflush to be completed with an energy efficient, low-head circulation pump

Faster back-flushing using less pond water

Agitating the bead with an air blower prior to backflushing reduces the amount of pond water needed to clean the filter when backflushing



Without an air blower, it can take more water and more backflush cycles to clean the filter when only the circulation pump is used.

easpro filter w_blower.jpg

Improves filtration capabilities

Preventing the beads from clumping together as the filter ages, the Air Blower helps to keep the surface area of the beads cleaner for maximum filtration.

currency-icons-512dollar-blue-dollar-sign-art-png-clipart-thumbnail-removebg-preview.png

Model                Max Pond          Size: Diameter x Height            Max Flow Rate                 Inlet/Outlet Size

PBF1800                 1800 Gallons                            16″ x 31″                                        1800 GPH                                      1 1/2″

PBF3600                3600 Gallons                            19″ x 36″                                       3000 GPH                                      1 1/2″
PBF6000                60
00 Gallons                           24″ x 43″                                        6000 GPH                                           2″
PBF10000               100
00 Gallons                         31″ x 51″                                       10000 GPH                                           2″

True Rock’ artificial boulders

‘True Rock’ artificial boulders are ideal for concealing pressure filter control heads, air pumps,
water pumps, pond filters, UV filters, lighting transformers, and other equipment.

    • Commercial-grade heavy-duty construction stands up to the elements

    • Colour and texture is part of the material, not painted on

    • Lightweight, easy to move, and very durable

    • Will not fade or crack and are made of recycled material

  • Medium

    Dimensions
    27″L X 21″W X 14″H

    Colour: Greystone / Sandstone


  • Large

    Dimensions:
    33″L X 24″W X 20″H

    Colour: Greystone / Sandstone

true rock artificial boulder

UV STERILIZERS
All UV’s aren’t created equal! The bottom line for UV users is Performance. Aqua Ultraviolet, with 27  years of UV manufacturing excellence, is unsurpassed at delivering high UV output, intensity and high flow rates while delivering superior quality, design, construction, features, lamp life, warranty and customer service.

UV STERILIZER
  8 Watt with wiper 3/4”
25 Watt with wiper 2”
57 Watt with wiper 2”

Replacement UV lamps are available

UV Sterilizer

Description                Fresh Water                    Fresh Water
                                Sterilizer (gallons)          Clarifier (gallons)

Classic   8 Watt           5-200                              up to 1500

Classic 15 Watt        200-500                             up to 2000

Classic 25 Watt      500-1200                             up to 4000

Pro Fast Falls
Complimentary to the structural integrity of our Filterfalls, the Pro Fast Falls is a great solution for waterfall features in challenging locations.

Pond liner can be attached to the back of the Pro Fast Falls or simply
inserted into a lined cavity.

It should be noted that this is not a biological filter.

Three sizes available:
Mini
Waterfall Width: 16″
Dimensions:  16.5″ x 9.5″D x 7.25″H
Max Pump Flow: 3000 GPH

Small
Waterfall Width: 19″
Dimensions:  20.5″ x 17″D x 10.25″H
Max Pump Flow: 4000 GPH

Medium
Waterfall Width: 26″
Dimensions:  27.5″ x 17″D x 10.25″H
Max Pump Flow: 6000 GPH

Large
Waterfall Width: 38″
Dimensions:  39.5″ x 17″D x 10.25″H
Max Pump Flow: 9000 GPH

pro fast falls
waterfall

Waterfall installed with three Fast Falls waterfall weirs.
The low profile design makes it easy to hide with vegetation and rocks. All you should really see it the sight of water with a beautiful cascading waterfall.

pro fast falls
pro fast falls

PRO SERIES BIOLOGICAL FILTERS

Pro Series Biological Waterfall Filters are manufactured under the rotational moulding process. This method of manufacture offers superior design advantages over other moulding processes, such as injection moulding. The process has a number of design strengths, such as consistent wall thickness and strong outside corners that are virtually stress-free. These attributes are particularly vital for the harsh frost conditions an Alberta winter can through at us.

Pro Series Waterfall Filters and not only help keep your pond clean and healthy, but it is also the ideal start to your stream or waterfall. An inlet hole is located on either side of the Biological Filter, for a convenient PVC pipe connection from the skimmer.

Pro Series Biological Waterfall Filters are buried in the ground so that they are hidden from view with the earth excavated for the pond. A dense filter mat ensures that clean water flows through the high-grade bio-media located on top for beneficial bacteria germination and growth. In addition to this, our Pro Series Biological Filters comes complete with a backflush system which allows you to quickly and efficiently cleanse the biofilter during the season for optimum performance.

You get what you pay for. And what you are paying for is the colonization of billions of more aerobic bacteria in your up-to-date bio media working away hard at eating up all those algae-promoting nutrients. Low nutrient levels result in clean, clear, healthy water that green algae just simply have a very difficult time surviving in. So we are not killing algae, we are just starving it out – naturally.

Pro Series FilterFalls Features:

1. Heavy-duty removable top grate supports rock camouflage

2. Support bars add stability and reinforce the top grate

3. Media bag. (Professional grade & back-flushable friendly Bio-Matrix media sold separately to provide max surface area for development of beneficial bacteria)

4. Dual Bio-Tech filter mats for mechanical  filtration

5. Sturdy bottom grate supports filter media

6. Rolled upper rim provides clean lines and incredible strength

7. 2” or 3” heavy-duty FIPT bulkhead for high flow rates

8. Bottom chamber accepts bulkheads on all sides while bottom cones reduce the surface area for back-flushing

9. One-piece liner flange allows easy, leak-free attachment of FilterFalls to pond liner

10. Solid lip and moulded-in inserts ensure a watertight liner attachment every time

11. Lifetime Warranty

filter falls

Model: BF1600

Waterfall Width: 16” spillway



Dimensions: 21½”W x 19½”D x 17¾”H


Pump Flow Range: 1,000 – 3,000 gph


Bulkhead: 1½”

Model: BF1900

Waterfall Width: 19” spillway

Dimensions: 28”W x 25”D x 21½”H

Pump Flow Range: 2,500 – 4,000 gph

Max Pond Size: 8’x10′

Bulkhead: 2”

Match to Skimmer: PS4600

filterfalls
filterfalls

Model: BF2600

Waterfall Width: 26” spillway

Dimensions: 34½”W x 25”D x 23”H

Pump Flow Range: 4,000 – 6,000 gph

Max Pond Size: 10’x15′

Bulkhead: 2”

Match to Skimmer: PS7000

Model: BF3800

Waterfall Width: 38” spillway

Dimensions: 46½”W x 30”D x 23”H

Pump Flow Range: 6,000 – 8,000 gph

Max Pond Size: 15’x20′

Bulkhead: 3”

Match to Skimmer: PS15000

filterfalls
filterfalls
